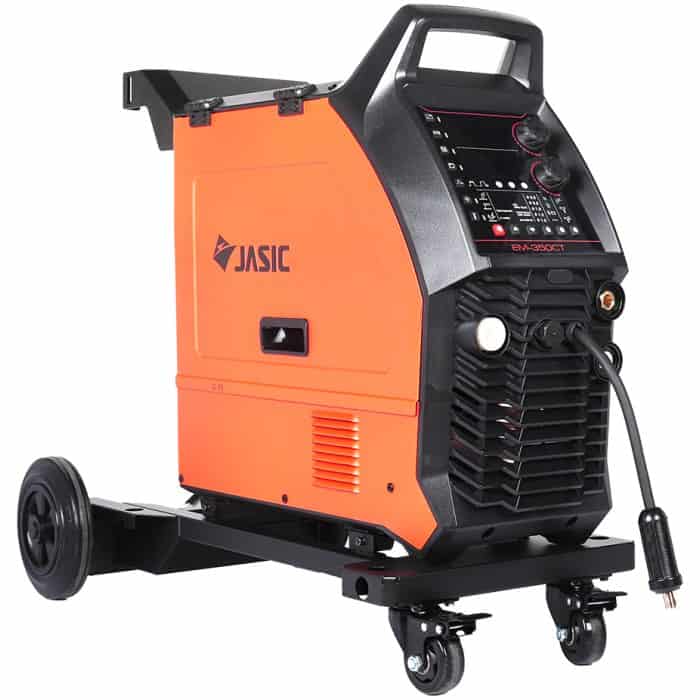

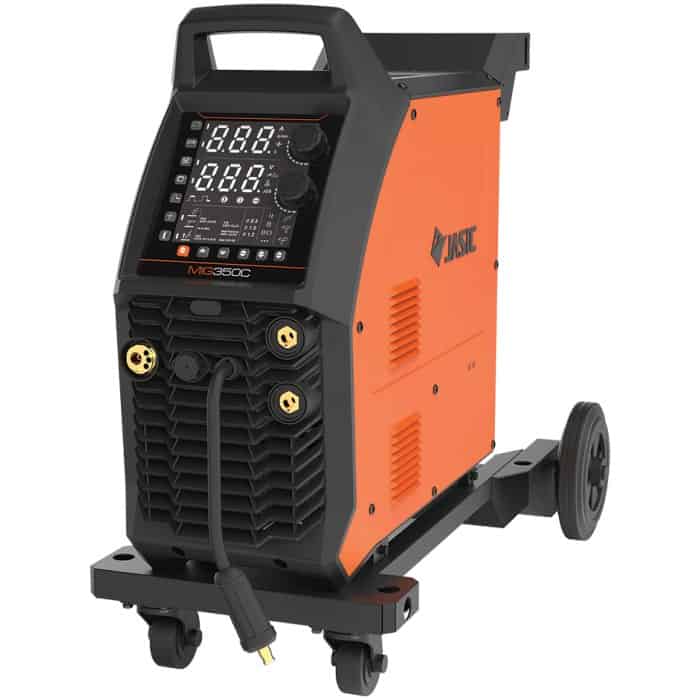

Featuring full synergic control, the ClearVision display with hollow rotary shaft encoder enables precise, effortless parameter adjustments with clear readouts in any lighting conditions. The compact unit comes with a custom low-profile trolley, designed to hold a size Y gas cylinder, offering excellent mobility and convenience in the workshop. A newly upgraded 4-roll wire feed motor with 37.45 mm rollers ensures smooth, trouble-free wire feeding, while program memory storage allows up to 10 jobs to be saved for each process. Auto-sleep mode ensures market leading energy efficiency while helping to extend the equipment lifespan. KEY FEATURES Rugged, ergonomic design Advanced inverter technology with ARM and DSP digital microprocessor control ClearVision HD digital display with hollow rotary shaft encoders for easy and precise parameter adjustment 2T/4T/Cycle and Spot trigger control Synergic/manual MIG/MAG, MMA & DC Lift-TIG capable Excellent welding characteristics with enhanced droplet transfer Crater fill setting On demand cooling and auto sleep mode ensures market leading energy efficiency with idle power consumption of less than 10W Key power electronic component protection Standard MIG, Push Pull or Spool Gun torch selection Enhanced dual drive wire feeder with 37.45mm rollers Program memory storage Welding Engineers Mode for default parameter selection IP23S protection class rating Flexible remote control solutions including wired, wireless and mobile app control USB Type-C port for software updates and device charging Generator friendly* * Generator must have AVR TECHNICAL DATA Input voltage AC 400V, 50/60 Hz No load voltage 76V MIG Ieff 13A Rated input power 15.2kVA Current range 30-350A Rated duty cycle @ 40ºC 40% Wire feed speed 2-24m/min Wire spool size D300 MMA Ieff 13.7A Rated input power 15kVA Current range 20-350A Rated duty cycle @ 40ºC 40% TIG Ieff 10.2A Rated input power 11.2kVA Current range 20-350A Rated duty cycle @ 40ºC 40% Efficiency 80% Power factor 0.94 Idle state power 10W Protection class IP23S Insulation class H Dimensions LxWxH 1000 x 530 x 933mm Weight 45.1Kg Recommended generator size 22.5kVA STANDARD ACCESSORIES MIG Welding Torch (HC400-4E), Earth Clamp,Gas Hose and Argon Regulator (SSARG2G), Trolley OPTIONAL ACCESSORIES Wireless Remote Control (HRC-02), Wired Remote Control (HRC-01), Mobile Bluetooth App Module (51009435), Spool On Gun, Push Button Torch
